Product name:

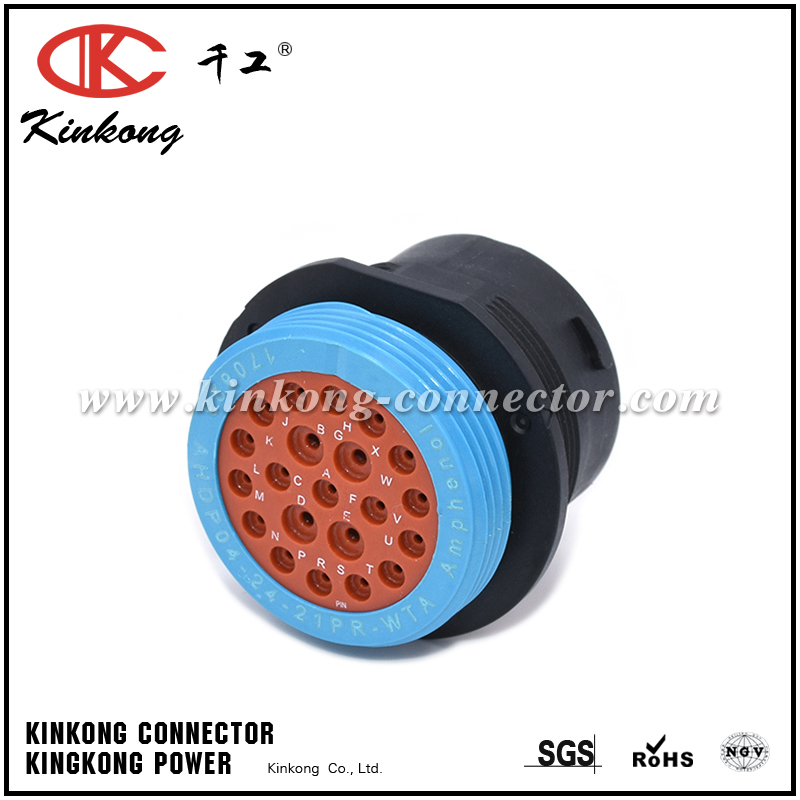

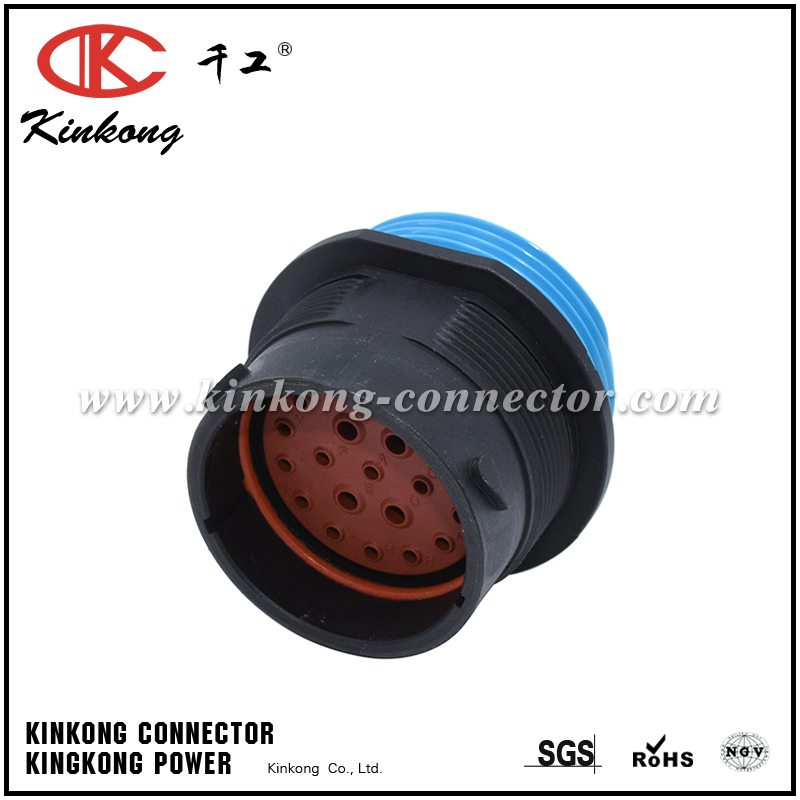

AHDP04-24-21PR-WTA SIZE 24 RECEPTACLE WITH 21 POSITIONS, PIN, STANDARD ARRANGEMENT, REDUCED SEAL, WIDE THREAD ADAPTER
Product Catalog:
DuraMate Series
OnLine Service:
 Print this Page
 Bookmark this
 E-mail Us
 PDF Download
点击这里给我发消息
【Prev Products】
【Next Products】
Product Details Product Inquiry

SPECIFICATIONS:




No. of positions:21
  • Contact type (Pin/Socket):Pin
  • Contact Size:12,16
  • AMP:25,13
  • AWG:10-14, 14-20
  • Gender:Standard
  • Housing Material:Thermoplastic
  • IP Rating:IP69K
  • Mating Cycle Durability:>100
  • Operating Temperature:-55°C to + 125°
  • Rear Seal Type:REDUCED SEAL
  • Color:Black
  • Dielectric Value:Dielectric withstanding voltage less than 2 milliamps current leakage @ 5000 volts AC
  • Insulation Resistance:1000 Megaohm min @ 25°C
  • Seal Material:Silicone Rubber
  • Seal Color:Blue
  • Mating Parts:AHDP06-24-21SN-WTA, AHDP06-24-21SR-WTA
  • Cross Reference:HDP24-24-21PE
