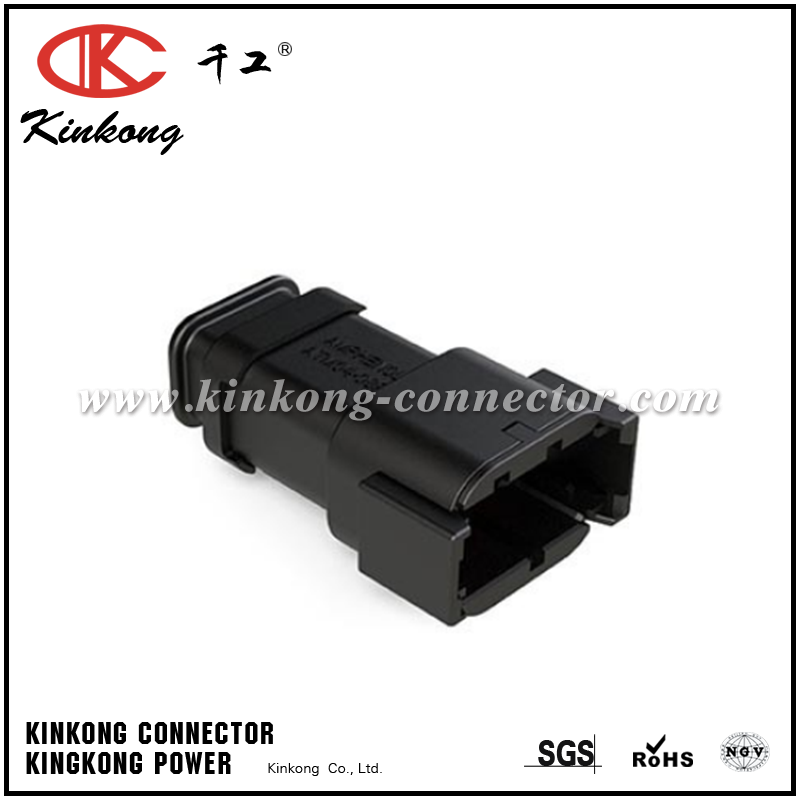

8 pin male electrical connector ATM04-08PB-SR1BK
Products Details
ATM04-08PB-SR1BK 8 pin male electrical connector
ATM Series
OnLine Service:
-
Product name:
-
Product Catalog:
| Product Details | Product Inquiry |
|---|
- No. of positions:8-Way B Position Key
- Contact Size:20
- Contact type (Pin/Socket):Pin
- AWG:16-22
- AMP:7.5A
- Color:Black
- Seal Diameter:1.35mm (.053") - 3.05mm (.120")
- IP Rating:IP67
- Operating Temperature:-55°C to +125°C
- Dielectric Value:Less than 2 milliamps current leakage@ 1500V AC
- Insulation Resistance:1000 megohms at 25°C
- Mating Cycle Durability:>100
- Housing Material:Thermoplastic
- Seal Material:Silicone Rubber
- Mating Part:ATM06-08SX* Plug
- Wedge Part#:AWM-8P
- Mating Part(s):ATM06-08SA* Plug
- Wedgelock Part Number :AWM-8P
- Wire Range:16-22 AWG
